AD8393 Adaptive Linear Power 12 V ADSL-CO Line Driver

Analog Devices

Description

Adaptive Linear Power™ 12 V ADSL-CO Line Driver AD8393 .
+12V INTERNALLY GENERATED PUMPED SUPPLY VOUT1 The AD8393 is a low power, high output current, single-supply, ADSL-CO line driver that features ADI’.

📥 Download Datasheet

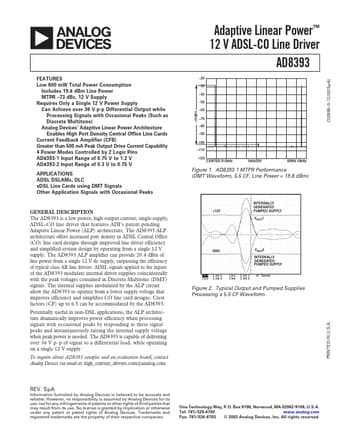

AD8393 Datasheet Preview — Preview of AD8393 PDF

Datasheet Specifications

Part number: AD8393
Manufacturer: Analog Devices ↗
File Size: 83.64 KB
Datasheet: AD8393_AnalogDevices.pdf
Description: Adaptive Linear Power 12 V ADSL-CO Line Driver

Features

* Low 600 mW Total Power Consumption Includes 19.8 dBm Line Power MTPR
* 73 dBc, 12 V Supply Requires Only a Single 12 V Power Supply Can Achieve over 36 V p-p Differential Output while Processing Signals with Occasional Peaks (Such as Discrete Multitone) Analog Devices’ Adaptive Linear Power A

Applications

* ADSL DSLAMs, DLC xDSL Line Cards using DMT Signals Other Application Signals with Occasional Peaks
* 30
* 40
* 50
* 73dBc
* 60
* 70
* 80
* 90
* 100
* 110
* 120 CENTER 513kHz 1kHz/DIV SPAN 10kHz Figure 1. AD8393-1 MTPR Pe
