AD8392A - Dual-Channel ADSL/ADSL2+ Line Driver

AD8392A Description

Data Sheet Low Power, High Output Current, Quad Op Amp, Dual-Channel ADSL/ADSL2+ Line Driver AD8392A .
The AD8392A is comprised of four high output current, low power consumption, operational amplifiers.

AD8392A Applications

* (20.4 dBm line power, 5.5 CF) Three active power modes plus shutdown High output voltage and current drive 500 mA peak output drive current 42.6 V p-p differential output voltage Low distortion
* 93 dBc @1 MHz second harmonic
* 103 dBc @ 1 MHz third harmonic High speed: 515 V/μs differ

📥 Download Datasheet

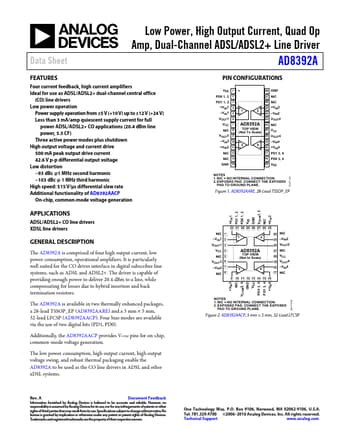

Preview of AD8392A PDF
