AD9100 Datasheet, Track-and-hold, Analog Devices

AD9100 Features

  • Track-and-hold Excellent Hold Mode Distortion into 250 ⍀
      –88 dB @ 30 MSPS (2.3 MHz VIN)
      –83 dB @ 30 MSPS (12.1 MHz VIN)
      –74 dB @ 30 MSPS (19.7 MHz VIN)

PDF File Details

Part number:

AD9100

Manufacturer:

Analog Devices ↗

File Size:

440.83kb

Download:

📄 Datasheet

Description:

Ultrahigh speed monolithic track-and-hold. Ultrahigh Speed Monolithic Track-and-Hold AD9100

  • FUNCTIONAL BLOCK DIAGRAM CLK CLK VIN 50⍀ A1 SWITCH CHOLD 22pF A2 VO

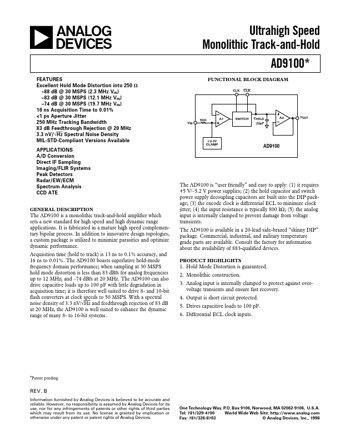

  • Datasheet Preview: AD9100 📥 Download PDF (440.83kb)
    Page 2 of AD9100 Page 3 of AD9100

    AD9100 Application

    • Applications A/D Conversion Direct IF Sampling Imaging/FLIR Systems Peak Detectors Radar/EW/ECM Spectrum Analysis CCD ATE GENERAL DESCRIPTION Ultra
