AD9101 Datasheet, Amplifier, Analog Devices

AD9101 Features

  • Amplifier 350 MHz Sampling Bandwidth 125 MHz Sampling Rate Excellent Hold Mode Distortion
      –75 dB @ 50 MSPS (25 MHz V IN)
      –57 dB @ 125 MSPS (50 MHz VIN) 7 ns Acquis

PDF File Details

Part number:

AD9101

Manufacturer:

Analog Devices ↗

File Size:

247.15kb

Download:

📄 Datasheet

Description:

125 msps monolithic sampling amplifier.   – SAMPLER VIN 125 MSPS Monolithic Sampling Amplifier AD9101 FUNCTIONAL BLOCK DIAGRAM AD9101 + CHOLD + 4X AMP VOUT

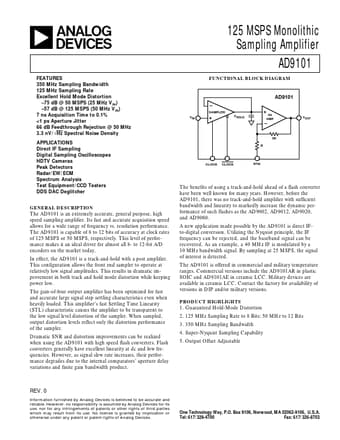

Datasheet Preview: AD9101 📥 Download PDF (247.15kb)
Page 2 of AD9101 Page 3 of AD9101

AD9101 Application

  • Applications Direct IF Sampling Digital Sampling Oscilloscopes HDTV Cameras Peak Detectors Radar/EW/ECM Spectrum Analysis Test Equipment/CCD Testers
