AD9115 Datasheet, Converters, Analog Devices

AD9115 Features

  • Converters Power dissipation @ 3.3 V, 20 mA output 191 mW @ 10 MSPS 232 mW @ 125 MSPS Sleep mode: <3 mW @ 3.3 V Supply voltage: 1.8 V to 3.3 V SFDR to Nyquist 86 dBc @ 1 MHz output 85 dBc @ 10 MHz

PDF File Details

Part number:

AD9115

Manufacturer:

Analog Devices ↗

File Size:

1.57MB

Download:

📄 Datasheet

Description:

8-/10-/12-/14-bit low power digital-to-analog converters. The AD9114/AD9115/AD9116/AD9117 are pin-compatible dual, 8-/10-/12-/14-bit, low power digital-to-analog converters (DACs) that provid

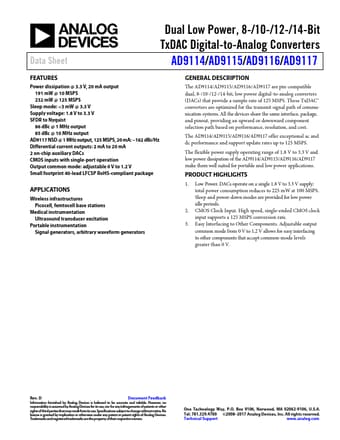

Datasheet Preview: AD9115 📥 Download PDF (1.57MB)
Page 2 of AD9115 Page 3 of AD9115

AD9115 Application

  • Applications Wireless infrastructures Picocell, femtocell base stations Medical instrumentation Ultrasound transducer excitation Portable instrument
