AD9114 Datasheet - Analog Devices

8-/10-/12-/14-Bit Low Power Digital-to-Analog Converters

AD9114 Features

* Power dissipation @ 3.3 V, 20 mA output 191 mW @ 10 MSPS 232 mW @ 125 MSPS Sleep mode:

AD9114 General Description

The AD9114/AD9115/AD9116/AD9117 are pin-compatible dual, 8-/10-/12-/14-bit, low power digital-to-analog converters (DACs) that provide a sample rate of 125 MSPS. These TxDAC® converters are optimized for the transmit signal path of communication systems. All the devices share the same interface, pac.

AD9114 Datasheet (1.57 MB)

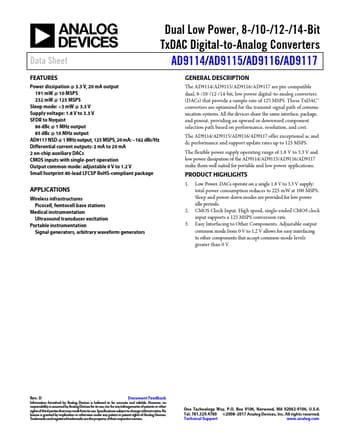

Preview of AD9114 PDF

Datasheet Details

Part number:

AD9114

Manufacturer:

Analog Devices ↗

File Size:

1.57 MB

Description:

8-/10-/12-/14-bit low power digital-to-analog converters.
