AD9119 RF Digital-to-Analog Converter

The AD9119/AD9129 are high performance, 11-/14-bit RF digitalto-analog converters (DACs) supporting data rates up to 2.85 GSPS. The DAC core is based on a quad-switch architecture that enables dual-edge clocking operation, effectively increasing the DAC update rate to 5.7 GSPS when configured for Mi.

AD9119 Features

* DAC update rate: up to 5.7 GSPS Direct RF synthesis at 2.85 GSPS data rate DC to 1.425 GHz in baseband mode DC to 1.0 GHz in 2× interpolation mode 1.425 GHz to 4.2 GHz in Mix-Mode Bypassable 2× interpolation Excellent dynamic performance Supports DOCSIS 3.0 wideband ACLR/harmonic performance 8 QAM c

AD9119_AnalogDevices.pdf

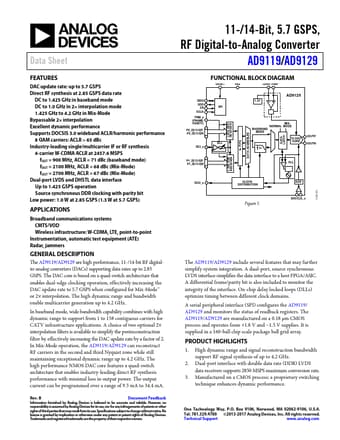

AD9119 Datasheet Preview — Preview of AD9119 PDF

Datasheet Details

Part number:

AD9119

Manufacturer:

Analog Devices ↗

File Size:

2.69 MB

Description:

Rf digital-to-analog converter.
