ADA4430-1

Ultralow Power Video Filter

ADA4430-1 Features

* 6th-order performance, low-pass video filter 1 dB flatness out to 8 MHz 50 dB rejection at 27 MHz Ultralow power-down current: 0.1 μA typ Low quiescent current: 1.85 mA typ Excellent video specification Differential gain: 0.25% Differential phase: 0.10° SAG correction Allows use of small capacitors

ADA4430-1 General Description

The ADA4430-1 is a fully integrated video reconstruction filter that combines excellent video specifications with low power consumption and an ultralow power disable, making it ideal for portable video filtering applications. With 1 dB frequency flatness out to 8 MHz and 50 dB rejection at 27 MHz, t.

ADA4430-1 Datasheet (344.00 KB)

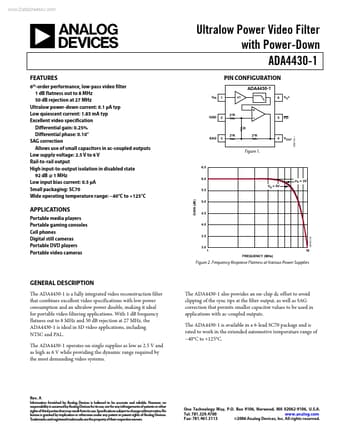

Preview of ADA4430-1 PDF

Datasheet Details

Part number:

ADA4430-1

Manufacturer:

Analog Devices ↗

File Size:

344.00 KB

Description:

Ultralow power video filter.
