ADA4431-1

Ultralow Power SD Video Filter

ADA4431-1 Features

* Third-order, low-pass video filter 1 dB flatness out to 6 MHz 27 dB rejection at 27 MHz Low quiescent current: 4.7 mA typical Low power-down current: 24 µA typical Load detection capability SAG correction Allows use of smaller capacitors in ac-coupled outputs Low supply voltage: 2.5 V to 3.6 V Charg

ADA4431-1 General Description

The ADA4431-1 is a fully integrated video reconstruction filter that combines excellent video specifications with low power consumption, making it ideal for portable video filtering applications. The ADA4431-1 is able to detect whether a video load is present at the output, powering down the device .

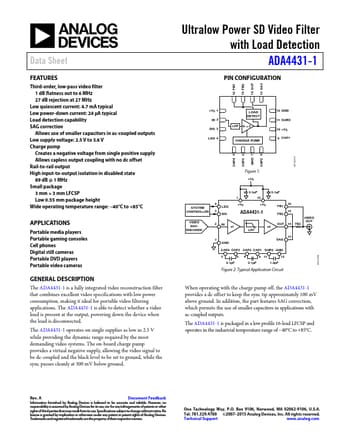

ADA4431-1 Datasheet (501.70 KB)

Preview of ADA4431-1 PDF

Datasheet Details

Part number:

ADA4431-1

Manufacturer:

Analog Devices ↗

File Size:

501.70 KB

Description:

Ultralow power sd video filter.
