ADA4433-1

(ADA4432-1 / ADA4433-1) SD Video Filter Amplifiers

ADA4433-1 Features

* SD Video Filter Amplifiers with Output Short-to-Battery Protection ADA4432-1/ADA4433-1 FUNCTIONAL BLOCK DIAGRAMS ENA +VS STB (LFCSP ONLY) Qualified for automotive applications Output overvoltage (short-to-battery) protection up to 18 V Short-to-battery output flag for wire diagnostics Output short

ADA4433-1 General Description

The ADA4432-1 (single-ended output) and ADA4433-1 (differential output) are fully integrated video reconstruction filters that combine overvoltage protection (short-to-battery [STB] protection) and short-to-ground (STG) protection on the outputs, with excellent video specifications and low power con.

ADA4433-1 Datasheet (829.36 KB)

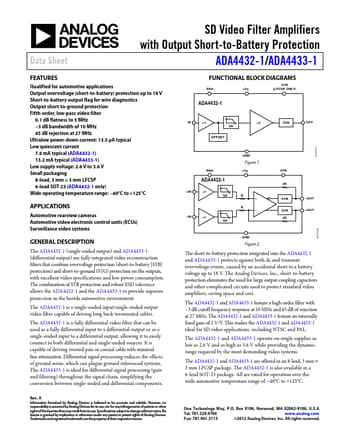

Preview of ADA4433-1 PDF

Datasheet Details

Part number:

ADA4433-1

Manufacturer:

Analog Devices ↗

File Size:

829.36 KB

Description:

(ada4432-1 / ada4433-1) sd video filter amplifiers.
