ADA4891-1, ADA4891-4, Rail-to-Rail Amplifiers

Low Cost CMOS, High Speed, Rail-to-Rail Amplifiers ADA4891-1/ADA4891-2/ADA4891-3/ADA4891-4 .
The ADA4891-1 (single), ADA4891-2 (dual), ADA4891-3 (triple), and ADA4891-4 (quad) are CMOS, high speed amplifiers that offer high performance at a lo.

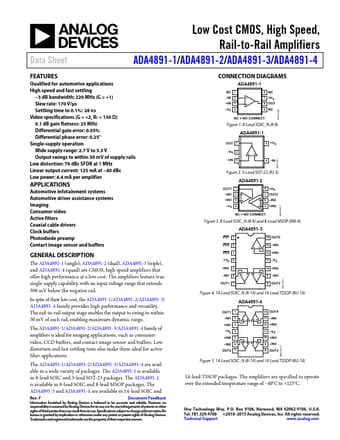

datasheet Preview Page 1 from Datasheet4u.com

ADA4891-4_AnalogDevices.pdf

ADA4891-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADA4891-1, ADA4891-4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADA4891-1, ADA4891-4

Manufacturer:

Analog Devices ↗

File Size:

728.62 KB

Description:

Rail-to-Rail Amplifiers

Note:

This datasheet PDF includes multiple part numbers: ADA4891-1, ADA4891-4.
Please refer to the document for exact specifications by model.

Features

* High speed and fast settling
* 3 dB bandwidth: 220 MHz (G = +1) Slew rate: 170 V/μs Settling time to 0.1%: 28 ns Video specifications (G = +2, RL = 150 Ω) 0.1 dB gain flatness: 25 MHz Differential gain error: 0.05% Differential phase error: 0.25° Single-supply operation Wide supply range: 2.7

Applications

* Imaging Consumer video Active filters Coaxial cable drivers Clock buffers Photodiode preamp Contact image sensor and buffers OUT1 1 ADA4891-2 8 7 6 5 +VS OUT2
* IN2 08054-027 08054-074
* IN1 2 +IN1 3
* VS 4 +IN2 NC = NO CONNECT Figure 3. 8-Lead SOIC_N (R-8) and 8-Lead MSOP
