Description

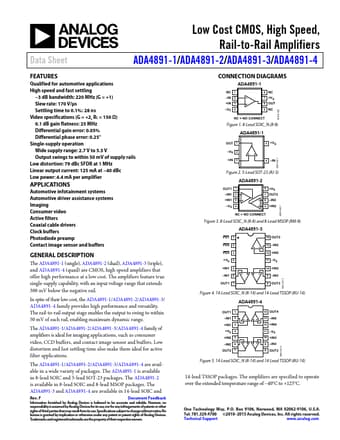

Low Cost CMOS, High Speed, Rail-to-Rail Amplifiers ADA4891-1/ADA4891-2/ADA4891-3/ADA4891-4 .
The ADA4891-1 (single), ADA4891-2 (dual), ADA4891-3 (triple), and ADA4891-4 (quad) are CMOS, high speed amplifiers that offer high performance at a lo.
Features
* High speed and fast settling
* 3 dB bandwidth: 220 MHz (G = +1) Slew rate: 170 V/μs Settling time to 0.1%: 28 ns Video specifications (G = +2, RL = 150 Ω) 0.1 dB gain flatness: 25 MHz Differential gain error: 0.05% Differential phase error: 0.25° Single-supply operation Wide supply range: 2.7
Applications
* Imaging Consumer video Active filters Coaxial cable drivers Clock buffers Photodiode preamp Contact image sensor and buffers
OUT1
1
ADA4891-2
8 7 6 5
+VS OUT2
* IN2
08054-027
08054-074
* IN1 2 +IN1 3
* VS 4
+IN2
NC = NO CONNECT
Figure 3. 8-Lead SOIC_N (R-8) and 8-Lead MSOP
