Part number: ADA4895-1
Manufacturer: Analog Devices (https://www.analog.com/)
File Size: 558.80KB
Download: 📄 Datasheet
Description: Railto-Rail Output Amplifier
Low wideband noise 1 nV/√Hz 1.6 pA/√Hz
Low 1/f noise: 2 nV/√Hz at 10 Hz Low distortion (SFDR): −96 dBc at 100 kHz, VOUT = 2 V p-p Low power: 3 mA per amplifier Low input .
Low noise preamplifier Ultrasound amplifiers PLL loop filters High performance analog-to-digital converter (ADC) drivers.
The ADA4895-1 (single) and ADA4895-2 (dual) are high speed voltage feedback amplifiers that are gain ≥ 10 stable with low input noise, rail-to-rail output, and a quiescent current of 3 mA per amplifier. With a 1/f noise of 2 nV/√Hz at 10 Hz and a spu.

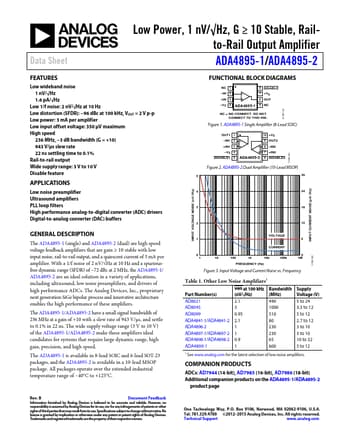

Image gallery
