ADM2587E, ADM2582E, Signal and Power Isolated RS-485 Transceiver

Data Sheet Signal and Power Isolated RS-485 Transceiver with ±15 kV ESD Protection ADM2582E/ADM2587E .
The ADM2582E/ADM2587E are fully integrated signal and power isolated data transceivers with ±15 kV ESD protection and are suitable for high speed comm.

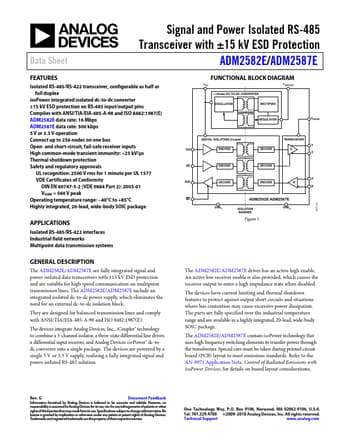

datasheet Preview Page 1 from Datasheet4u.com

ADM2582E_AnalogDevices.pdf

ADM2587E Datasheet Preview — This datasheet PDF includes multiple part numbers: ADM2587E, ADM2582E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADM2587E, ADM2582E

Manufacturer:

Analog Devices ↗

File Size:

517.36 KB

Description:

Signal and Power Isolated RS-485 Transceiver

Note:

This datasheet PDF includes multiple part numbers: ADM2587E, ADM2582E.
Please refer to the document for exact specifications by model.

Features

* Isolated RS-485/RS-422 transceiver, configurable as half or full duplex isoPower integrated isolated dc-to-dc converter ±15 kV ESD protection on RS-485 input/output pins Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E) ADM2582E data rate: 16 Mbps ADM2587E data rate: 500 kbps 5 V or 3.3 V ope

Applications

* Isolated RS-485/RS-422 interfaces Industrial field networks Multipoint data transmission systems FUNCTIONAL BLOCK DIAGRAM VCC VISOOUT isoPower DC-TO-DC CONVERTER OSCILLATOR RECTIFIER REGULATOR VISOIN DIGITAL ISOLATION iCoupler TxD ENCODE DECODE TRANSCEIVER D Y Z DE ENCODE DECODE RxD D
