ADP5014

Integrated Power

ADP5014 Features

* Input voltage range: 2.75 V to 6.0 V Programmable output voltage range: 0.5 V to 0.9 × PVINx Low output noise: ~25 μV rms when VOUT ≤ VREF ±1.0% output accuracy over full temperature range 500 kHz to 2.5 MHz adjustable switching frequency Power regulation Channel 1 and Channel 2: programmable 2 A/4

ADP5014 General Description

The ADP5014 combines four high performance, low noise buck regulators in a 40-lead LFCSP package. Relying on its low output noise (~25 μV rms when VOUT ≤ VREF), the low noise buck regulator enables the powering up of the noise sensitive signal chain products. All channels in the ADP5014 integrate h.

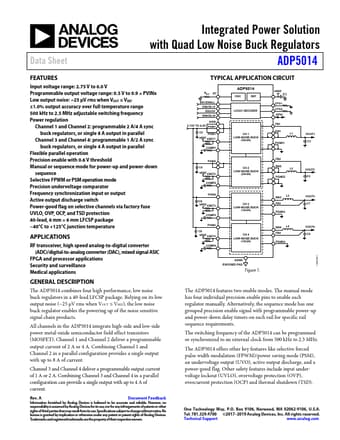

ADP5014 Datasheet (820.35 KB)

Preview of ADP5014 PDF

Datasheet Details

Part number:

ADP5014

Manufacturer:

Analog Devices ↗

File Size:

820.35 KB

Description:

Integrated power.
