ADP5120 - Pressure sensor

Product Overview

Panasonic

Part number	ADP5120
Manufacturer	Panasonic
File Size	248.56 KB
Description	Pressure sensor
Datasheet	ADP5120 Datasheet
Note	This datasheet PDF includes multiple part numbers: ADP5120, ADP5100. Please refer to the document for exact specifications by model.

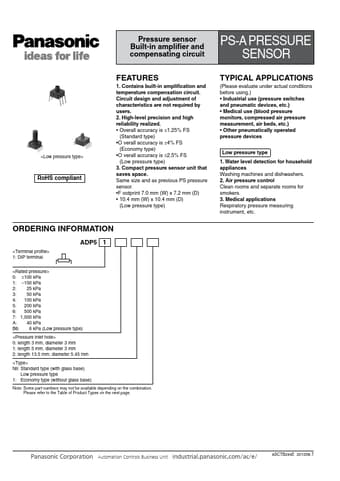

Additional preview pages of the ADP5120 datasheet.

1. Contains built-in ampliﬁcation and temperature compensation circuit. Circuit design and adjustment of characteristics are not required by users. 2. High-level precision and high reliability realized.
Overall accuracy is ±1.25% FS (Standard type).
O verall accuracy is ±4% FS (Economy type).
O verall accuracy is ±2.5% FS (Low pressure type) 3. Compact pressure sensor unit that saves space. Same size and as previous PS pressure sensor.
F ootprint 7.0 mm (W) x 7.
