ADP5134

1200 mA Buck Regulators and Two 300 mA LDO Regulators

ADP5134 Features

* Main input voltage range of 2.5 V to 5.5 V Two 1200 mA buck regulators and two 300 mA LDO regulators 24-lead, 4 mm × 4 mm LFCSP package Regulator accuracy of ±1.8% Factory programmable or external adjustable VOUTx Precision enable pins for easier power sequencing Factory selectable power-good pin 3

ADP5134 General Description

The ADP5134 combines two high performance buck regulators and two low dropout (LDO) regulators. It is available in a 24-lead 4 mm × 4 mm LFCSP. The high switching frequency of the buck regulators enables tiny multilayer external components and minimizes the board space. When the MODE pin is set to h.

ADP5134 Datasheet (862.77 KB)

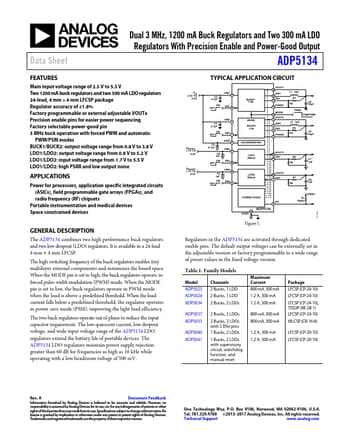

Preview of ADP5134 PDF

Datasheet Details

Part number:

ADP5134

Manufacturer:

Analog Devices ↗

File Size:

862.77 KB

Description:

1200 ma buck regulators and two 300 ma ldo regulators.
