ADP5023

Regulators

ADP5023 Features

* Main input voltage range: 2.3 V to 5.5 V Two 800 mA buck regulators and one 300 mA LDO 24-lead, 4 mm × 4 mm LFCSP package Regulator accuracy: ±1.8% Factory programmable or external adjustable VOUTx 3 MHz buck operation with forced PWM and auto PWM/PSM modes BUCK1/BUCK2: output voltage range from 0.8

ADP5023 General Description

The ADP5023 combines two high performance buck regulators and one low dropout (LDO) regulator in a small, 24-lead 4 mm × 4 mm LFCSP to meet demanding performance and board space requirements. The high switching frequency of the buck regulators enables tiny multilayer external components and minimize.

ADP5023 Datasheet (755.07 KB)

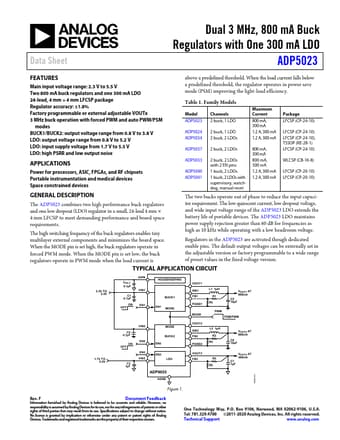

Preview of ADP5023 PDF

Datasheet Details

Part number:

ADP5023

Manufacturer:

Analog Devices ↗

File Size:

755.07 KB

Description:

Regulators.
