ADP5020

Power Management

ADP5020 Features

* Input voltage range: 2.4 V to 5.5 V Low standby current: 1 µA Switching frequency: 3 MHz I2C interface Synchronous Buck 1 regulator: 600 mA Synchronous Buck 2 regulator: 250 mA Low dropout regulator (LDO): 150 mA Internal compensation Internal soft start Thermal shutdown 20-lead 4 mm × 4 mm LFCSP AP

ADP5020 General Description

The ADP5020 provides a highly integrated power solution that includes all of the power circuits necessary for a digital imaging module. It comprises two step-down dc-to-dc converters, one LDO, and a power sequence controller. All dc-to-dc converters integrate power pMOSFETs and nMOSFETs, making the .

ADP5020 Datasheet (0.99 MB)

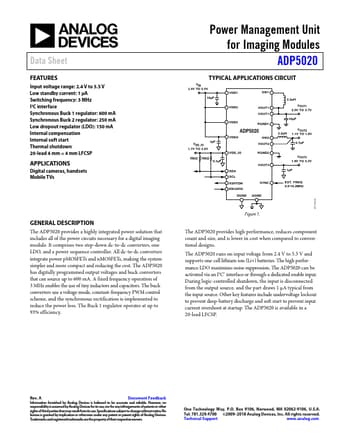

Preview of ADP5020 PDF

Datasheet Details

Part number:

ADP5020

Manufacturer:

Analog Devices ↗

File Size:

0.99 MB

Description:

Power management.
