ADP5135

Triple 1800 mA Buck Regulators

ADP5135 Features

* Input voltage range: 3.0 V to 5.5 V Three 1800 mA buck regulators 24-lead, 4 mm × 4 mm LFCSP package Regulator accuracy: ±1.8% Factory programmable or external adjustable VOUTx pins Precision enables for easier power sequencing Power-good pins for monitoring each regulator 3 MHz buck operation with

ADP5135 General Description

The ADP5135 combines three high performance buck regulators (BUCK1, BUCK2, and BUCK3). It is available in a 24-lead, 4 mm × 4 mm LFCSP. The high switching frequency of the buck regulators enables tiny multilayer external components and minimizes the board space. When the MODE pin is set to high, the.

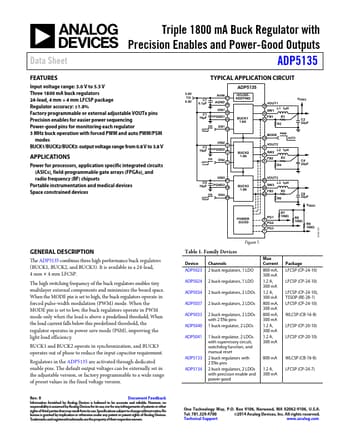

ADP5135 Datasheet (776.30 KB)

Preview of ADP5135 PDF

Datasheet Details

Part number:

ADP5135

Manufacturer:

Analog Devices ↗

File Size:

776.30 KB

Description:

Triple 1800 ma buck regulators.
