ADXL202E, Dual-Axis Accelerometer

a Low-Cost ؎2 g Dual-Axis Accelerometer with Duty Cycle Output ADXL202E * FUNCTIONAL BLOCK DIAGRAM 3V TO 5.25V CX VDD X SENSOR DEMOD CDC OSCILLATO.
The ADXL202E is a low-cost, low-power, complete 2-axis accelerometer with a digital output, all on a single monolithic IC.

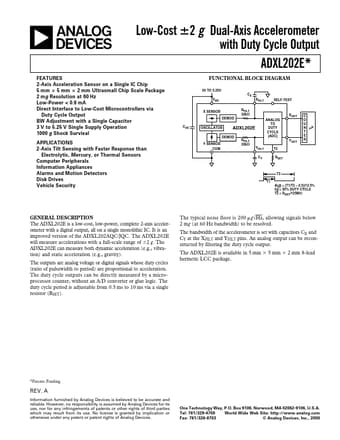

datasheet Preview Page 1 from Datasheet4u.com

ADXL202E_AnalogDevices.pdf

ADXL202E Datasheet Preview — Preview of ADXL202E PDF

Datasheet Details

Part number:

ADXL202E

Manufacturer:

Analog Devices ↗

File Size:

154.79 KB

Description:

Dual-Axis Accelerometer

Features

* 2-Axis Acceleration Sensor on a Single IC Chip 5 mm ؋ 5 mm ؋ 2 mm Ultrasmall Chip Scale Package 2 mg Resolution at 60 Hz Low-Power < 0.6 mA Direct Interface to Low-Cost Microcontrollers via Duty Cycle Output BW Adjustment with a Single Capacitor 3 V to 5.25 V Single Supply Operation 1000 g Shock Sur

Applications

* 2-Axis Tilt Sensing with Faster Response than Electrolytic, Mercury, or Thermal Sensors Computer Peripherals Information Appliances Alarms and Motion Detectors Disk Drives Vehicle Security XOUT ADXL202E RFILT 32k⍀ DEMOD Y SENSOR COM C O U N ␮P T E R T2 T1 A(g) = (T1/T2
* 0.5)/12.5% 0g =
