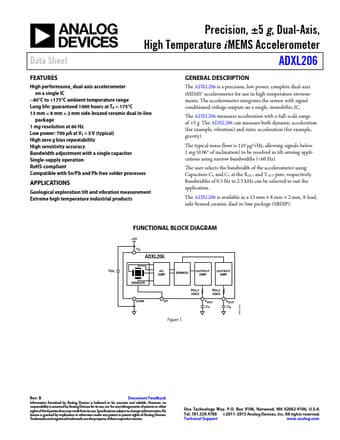

ADXL206 Datasheet, Accelerometer, Analog Devices

ADXL206 Features

• Accelerometer High performance, dual-axis accelerometer on a single IC
• 40°C to +175°C ambient temperature range Long life: guaranteed 1000 hours at TA = 175°C 13 mm × 8 mm × 2 mm side-brazed

PDF File Details

Part number:

ADXL206

Manufacturer:

Analog Devices ↗

File Size:

388.96kb

Download:

📄 Datasheet

Description:

High temperature imems accelerometer. The ADXL206 is a precision, low power, complete dual-axis iMEMS® accelerometer for use in high temperature environments. The accelero

ADXL206 Application

• Applications Geological exploration tilt and vibration measurement Extreme high temperature industrial products GENERAL DESCRIPTION The ADXL206 is
