ADXL213 Datasheet, Accelerometer, Analog Devices

ADXL213 Features

• Accelerometer Dual axis accelerometer on a single IC chip 5 mm × 5 mm × 2 mm LCC package 1 mg resolution at 60 Hz Low power: 700 µA at VS = 5 V (typical) High zero g bias stability High sensitivity a

PDF File Details

Part number:

ADXL213

Manufacturer:

Analog Devices ↗

File Size:

565.25kb

Download:

📄 Datasheet

Description:

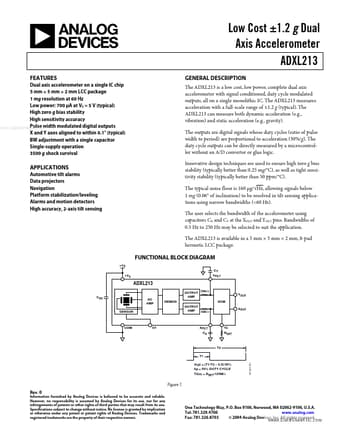

Low cost 1.2 g dual axis accelerometer. The ADXL213 is a low cost, low power, complete dual axis accelerometer with signal conditioned, duty cycle modulated outputs, all on

ADXL213 Application

• Applications using narrow bandwidths (<60 Hz). The user selects the bandwidth of the accelerometer using capacitors CX and CY at the XFILT and YFILT
