ADXL354, 3-Axis MEMS Accelerometers

Data Sheet ADXL354/ADXL355 Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometers .
The analog output ADXL354 and the digital output ADXL3551 are low noise density, low 0 g offset drift, low power, 3-axis accelerometers with selectabl.

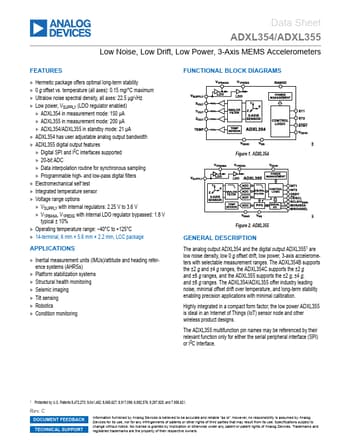

datasheet Preview Page 1 from Datasheet4u.com

ADXL354-AnalogDevices.pdf

ADXL354 Datasheet Preview — Preview of ADXL354 PDF

Datasheet Details

Part number:

ADXL354

Manufacturer:

Analog Devices ↗

File Size:

3.90 MB

Description:

3-Axis MEMS Accelerometers

Features

* Hermetic package offers optimal long-term stability
* 0 g offset vs. temperature (all axes): 0.15 mg/°C maximum
* Ultralow noise spectral density, all axes: 22.5 µg/√Hz
* Low power, VSUPPLY (LDO regulator enabled)
* ADXL354 in measurement mode: 150 µA
* ADXL355 in measureme

Applications

* Inertial measurement units (IMUs)/attitude and heading reference systems (AHRSs)
* Platform stabilization systems
* Structural health monitoring
* Seismic imaging
* Tilt sensing
* Robotics
* Condition monitoring FUNCTIONAL BLOCK DIAGRAMS Figure 1. ADXL354 Figure 2. ADX
