ADXL357, ADXL356 - 3-Axis MEMS Accelerometers

ADXL357 Description

Data Sheet ADXL356/ADXL357/ADXL357B Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometers .
The analog output ADXL356 and the digital outputs ADXL357 and ADXL357B are low noise density, low 0 g offset drift, low power, 3-axis accelerometers w.

ADXL357 Features

* 0 g offset vs. temperature (all axes): 0.75 mg/°C maximum
* Ultralow noise spectral density (all axes): 75 µg/√Hz
* Low power, VSUPPLY (LDO regulator enabled)
* ADXL356 in measurement mode: 150 µA
* ADXL357/ADXL357B in measurement mode: 200 µA
* ADXL356/ADXL357/ADXL357B in

ADXL357 Applications

* Inertial measurement units (IMUs)/attitude and heading reference systems (AHRSs)
* Platform stabilization systems
* Structural health monitoring
* Seismic imaging
* Tilt sensing
* Robotics
* Condition monitoring FUNCTIONAL BLOCK DIAGRAMS Figure 1. ADXL356 Figure 2. ADX

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADXL357, ADXL356. Please refer to the document for exact specifications by model.

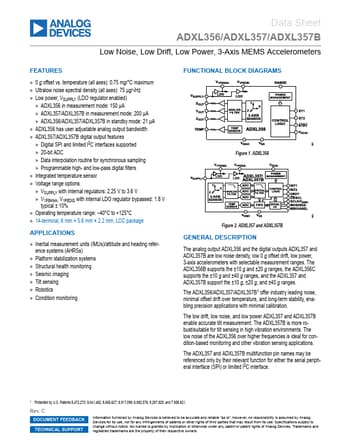

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADXL357, ADXL356
Manufacturer
Analog Devices ↗
File Size
3.47 MB
Datasheet
ADXL356-AnalogDevices.pdf
Description
3-Axis MEMS Accelerometers
Note
This datasheet PDF includes multiple part numbers: ADXL357, ADXL356.
Please refer to the document for exact specifications by model.
