HMC550 Datasheet, Spst, Analog Devices

HMC550 Features

• Spst Failsafe Operation - “On” When Unpowered Wide Vdd Range: 1.2V to 5V Very Low On State Current: 200 nA Low Insertion Loss: 0.7 dB High IP3: +52 dBm Compact SOT26 SMT Package Switches -

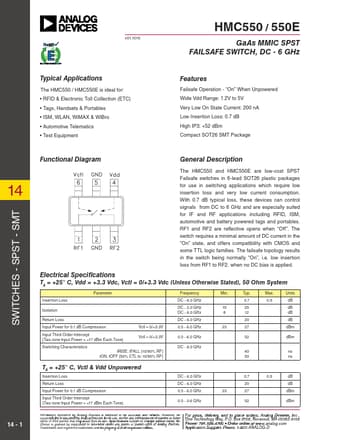

PDF File Details

Part number:

HMC550

Manufacturer:

Analog Devices ↗

File Size:

323.58kb

Download:

📄 Datasheet

Description:

Gaas mmic spst. The HMC550 and HMC550E are low-cost SPST Failsafe switches in 6-lead SOT26 plastic packages for use in switching applications which

HMC550 Application

• Applications The HMC550 / HMC550E is ideal for:
• RFID & Electronic Toll Collection (ETC)
• Tags, Handsets & Portables
• ISM
