HMC550A

GaAs MMIC SPST FAILSAFE SWITCH

HMC550A Features

* Failsafe Operation - “On” When Unpowered Wide Vdd Range: 1.2V to 5V Very Low On State Current: 200 nA Low Insertion Loss: 0.7 dB High IP3: +52 dBm Compact SOT26 SMT Package Functional Diagram General Description The HMC550A and HMC550AE are low-cost SPST Failsafe switches in 6-lead SOT26 plastic

HMC550A General Description

The HMC550A and HMC550AE are low-cost SPST Failsafe switches in 6-lead SOT26 plastic packages for use in switching applications which require low insertion loss and very low current consumption. With 0.7 dB typical loss, these devices can control signals from DC to 6 GHz and are especially suited f.

HMC550A Datasheet (331.14 KB)

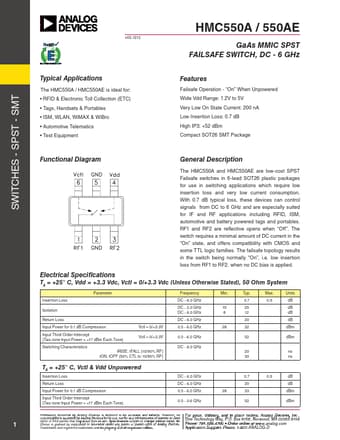

Preview of HMC550A PDF

Datasheet Details

Part number:

HMC550A

Manufacturer:

Analog Devices ↗

File Size:

331.14 KB

Description:

Gaas mmic spst failsafe switch.
HMC550A / 550AE v00.1212 GaAs MMIC SPST FAILSAFE SWITCH, DC - 6 GHz SWITCHES - SPST - SMT Typical Applications The HMC550A / HMC550AE is ideal for.
