HMC551LP4E, HMC551LP4 Datasheet - Analog Devices

HMC551LP4E GaAs MMIC MIXER

The HMC551LP4 & HMC551LP4E are high linearity, double balanced Converter ICs that operate from 0.8 to 1.2 GHz and deliver a +27 dBm input third order intercept point. The LO amplifier output and high dynamic range mixer input are positioned so that an external LO filter can be placed in series betwe.

HMC551LP4E Features

* The HMC551LP4 / HMC551LP4E is ideal for Wireless Input IP3: +27 dBm Infrastructure Applications: Low Input LO Drive: -4 to +4 dBm

* Cellular / 3G Infrastructure LO to RF Isolation: 27 dB

* Base Stations & Repeaters Low Conversion Loss: 8 dB

* GSM, CDMA & W-CDMA

HMC551LP4-AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: HMC551LP4E, HMC551LP4. Please refer to the document for exact specifications by model.

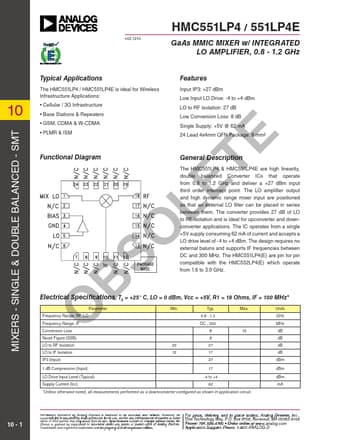

HMC551LP4E Datasheet Preview Page 2 HMC551LP4E Datasheet Preview Page 3

Datasheet Details

Part number:

HMC551LP4E, HMC551LP4

Manufacturer:

Analog Devices ↗

File Size:

676.87 KB

Description:

Gaas mmic mixer.

Note:

This datasheet PDF includes multiple part numbers: HMC551LP4E, HMC551LP4.
Please refer to the document for exact specifications by model.
