HMC551LP4

GaAs MMIC MIXER

HMC551LP4 Features

* The HMC551LP4 / HMC551LP4E is ideal for Wireless Input IP3: +27 dBm Infrastructure Applications: Low Input LO Drive: -4 to +4 dBm

* Cellular / 3G Infrastructure LO to RF Isolation: 27 dB

* Base Stations & Repeaters Low Conversion Loss: 8 dB

* GSM, CDMA & W-CDMA

HMC551LP4 General Description

The HMC551LP4 & HMC551LP4E are high linearity, double balanced Converter ICs that operate from 0.8 to 1.2 GHz and deliver a +27 dBm input third order intercept point. The LO amplifier output and high dynamic range mixer input are positioned so that an external LO filter can be placed in series betwe.

HMC551LP4 Datasheet (676.87 KB)

Preview of HMC551LP4 PDF

Datasheet Details

Part number:

HMC551LP4

Manufacturer:

Analog Devices ↗

File Size:

676.87 KB

Description:

Gaas mmic mixer.

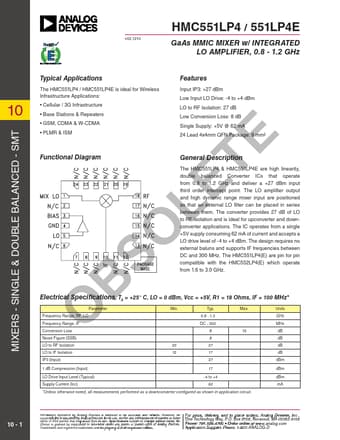

HMC551LP4 / 551LP4E v02.1210 GaAs MMIC MIXER w/ INTEGRATED LO AMPLIFIER, 0.8 - 1.2 GHz Mixers - SINGLE & DOUBLE BALANCED - SMT 10 Typical Applica.
