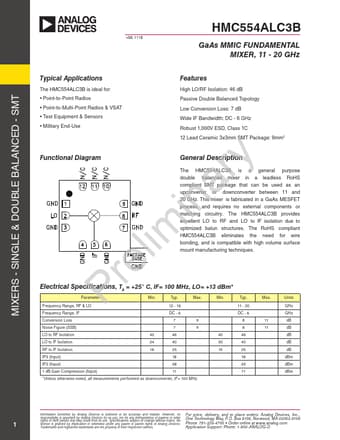

HMC554ALC3B Datasheet, Mixer, Analog Devices

HMC554ALC3B Features

• Mixer High LO/RF Isolation: 46 dB Passive Double Balanced Topology Low Conversion Loss: 7 dB Wide IF Bandwidth: DC - 6 GHz Robust 1,000V ESD, Class 1C 12 Lead Ceramic 3x3mm SMT Package: 9mm2

PDF File Details

Part number:

HMC554ALC3B

Manufacturer:

Analog Devices ↗

File Size:

578.23kb

Download:

📄 Datasheet

Description:

Gaas mmic fundamental mixer. The HMC554ALC3B is a general purpose double balanced mixer in a leadless RoHS compliant SMT package that can be used as an upconverte

HMC554ALC3B Application

• Applications The HMC554ALC3B is ideal for:
• Point-to-Point Radios
• Point-to-Multi-Point Radios & VSAT
• Test Equipment & S
