AIC1117A - 1A Low Dropout Positive Adjustable Regulator

Datasheet Summary

Description

Dropout Voltage 1.3V at 1A Output Current.

Fast Transient Response.

Line Regulation, typical at 0.015%.

Load Regulation, typical at 0.1%

Current Limiting and Thermal Protection.

and 3.3V.

Standard 3-Pin Power

Features

Analog Intergrations Corporation

📥 Download Datasheet

Datasheet Details

Part number	AIC1117A
Manufacturer	Analog Intergrations Corporation
File Size	214.40 KB
Description	1A Low Dropout Positive Adjustable Regulator
Datasheet	AIC1117A Datasheet
Additional preview pages of the AIC1117A datasheet.

📁 Similar Datasheet

AIC111 - IC Design Specification 1.3-V microPower(TM) DSP/uC Voice Band Audio CODEC (Rev. A) (ETCTI)
AIC1084 - 5A Low Dropout Positive Adjustable Regulator (Analog Integrations)
AIC1221 - Ultra LDO 2A Linear Regulator (aic)
AIC1531 - 500mA Dual Linear Regulator (AIC)
AIC1532 - 500mA DUAL REGULATOR (AIC)
AIC1630A - HIGH-EFFICIENCY STEP-UP DC/DC CONVERTER CONTROLLER (aic)
AIC1634 - 1.4MHz Current-Mode Step-Up DC/DC Converter (aic)
AIC1639 - 3-PIN ONE-CELL STEP-UP DC/DC CONVERTER (aic)
AIC1647 - White LED Step-Up Converter (aic)
AIC1720 - 100mA Low Dropout Linear Regulator (Analog Integrations)

Other Datasheets by Analog Intergrations Corporation

AIC1117 - 800mA Low Dropout Positive Adjustable Regulator
AIC1185 - 3A Ultra Low Dropout Linear Regulator
AIC1187 - 1A Ultra Low Dropout Linear Regulator
AIC1189 - Ultra LDO 2A Linear Regulator
AIC1190 - Ultra LDO 1A Linear Regulator
AIC1085 - 3A LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR
AIC1086 - 1.5A Low Dropout Positive Adjustable Regulator
AIC1340 - High Performance/ Tripple-Ouput/ Auto-Tracking Combo Controller

Full PDF Text Transcription

Click to expand full text

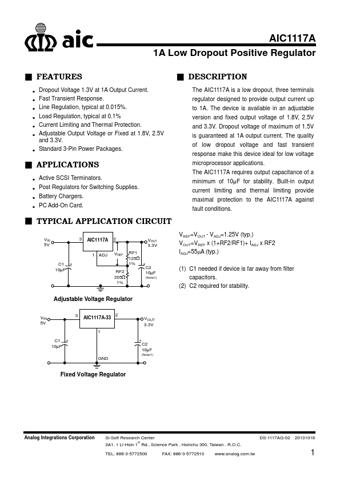

AIC1117A 1A Low Dropout Positive Regulator  FEATURES  DESCRIPTION  Dropout Voltage 1.3V at 1A Output Current.  Fast Transient Response.  Line Regulation, typical at 0.015%.  Load Regulation, typical at 0.1%  Current Limiting and Thermal Protection.  Adjustable Output Voltage or Fixed at 1.8V, 2.5V and 3.3V.  Standard 3-Pin Power Packages.  APPLICATIONS  Active SCSI Terminators.  Post Regulators for Switching Supplies.  Battery Chargers.  PC Add-On Card.  TYPICAL APPLICATION CIRCUIT The AIC1117A is a low dropout, three terminals regulator designed to provide output current up to 1A. The device is available in an adjustable version and fixed output voltage of 1.8V, 2.5V and 3.3V. Dropout voltage of maximum of 1.5V is guaranteed at 1A output current.
