AIC1117 - 800mA Low Dropout Positive Adjustable Regulator

Datasheet Summary

Description

The AIC1117 is a low dropout, three terminals regulator designed to provide output current up to 800mA.

The device is available in an adjustable version and fixed output voltage of 1.8V, 2.5V, 2.85V, 3.3V and 5V.

Dropout voltage of maximum of 1.4V is guaranteed at 800mA output current.

Features

  • Dropout Voltage 1.2V at 800mA Output Current. Fast Transient Response. Line Regulation, typical at 0.015%. Load Regulation, typical at 0.1%. Current Limiting and Thermal Protection. Adjustable Output Voltage or Fixed at 1.8V, 2.5V, 2.85V, 3.3V, and 5V. Standard 3-Pin Power Packages.

📥 Download Datasheet

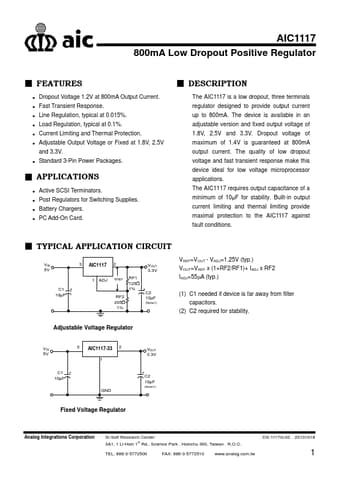

Datasheet preview – AIC1117

Datasheet Details

Part number AIC1117
Manufacturer Analog Intergrations Corporation
File Size 255.58 KB
Description 800mA Low Dropout Positive Adjustable Regulator
Datasheet download datasheet AIC1117 Datasheet
Additional preview pages of the AIC1117 datasheet.
