AIC1187 - 1A Ultra Low Dropout Linear Regulator

Description

The AIC1187 is an ultra low dropout and high performance linear regulator with 1A output current capability.

The output voltage is fixed 1.5V, 1.8V, 2.5V and 3.3V.

Its low dropout voltage and fast transient response make it ideal for low voltage microprocessor applications.

Features

  • S z Guaranteed 1A Output Current. z Low Ground Current z Wide Operating Voltage Ranges: 2.3V to 5.5V. z 0.5µA Quiescent Current in Shutdown. z Fixed Output Voltage of 1.5V, 1.8V, 2.5V, 3.3V z Fast Transient Response z Current Limit and Thermal Limit z Available in SOT-223, TO-220, TO-263 TO-263-5, TO-252 and TO-252-5 Packages.

📥 Download Datasheet

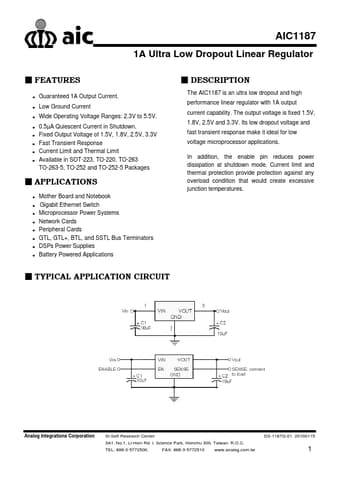

Datasheet preview – AIC1187

Datasheet Details

Part number AIC1187
Manufacturer Analog Intergrations Corporation
File Size 473.08 KB
Description 1A Ultra Low Dropout Linear Regulator
Datasheet download datasheet AIC1187 Datasheet
Additional preview pages of the AIC1187 datasheet.

📁 Similar Datasheet

  • AIC111 - IC Design Specification 1.3-V microPower(TM) DSP/uC Voice Band Audio CODEC (Rev. A) (ETCTI)
  • AIC1084 - 5A Low Dropout Positive Adjustable Regulator (Analog Integrations)
  • AIC1221 - Ultra LDO 2A Linear Regulator (aic)
  • AIC1531 - 500mA Dual Linear Regulator (AIC)
  • AIC1532 - 500mA DUAL REGULATOR (AIC)
  • AIC1630A - HIGH-EFFICIENCY STEP-UP DC/DC CONVERTER CONTROLLER (aic)
  • AIC1634 - 1.4MHz Current-Mode Step-Up DC/DC Converter (aic)
  • AIC1639 - 3-PIN ONE-CELL STEP-UP DC/DC CONVERTER (aic)
  • AIC1647 - White LED Step-Up Converter (aic)
  • AIC1720 - 100mA Low Dropout Linear Regulator (Analog Integrations)
Other Datasheets by Analog Intergrations Corporation
  • AIC1185 - 3A Ultra Low Dropout Linear Regulator
  • AIC1189 - Ultra LDO 2A Linear Regulator
  • AIC1117 - 800mA Low Dropout Positive Adjustable Regulator
  • AIC1117A - 1A Low Dropout Positive Adjustable Regulator
  • AIC1190 - Ultra LDO 1A Linear Regulator
  • AIC1085 - 3A LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR
  • AIC1086 - 1.5A Low Dropout Positive Adjustable Regulator
  • AIC1340 - High Performance/ Tripple-Ouput/ Auto-Tracking Combo Controller

Full PDF Text Transcription

Click to expand full text
AIC1187 1A Ultra Low Dropout Linear Regulator „ FEATURES z Guaranteed 1A Output Current. z Low Ground Current z Wide Operating Voltage Ranges: 2.3V to 5.5V. z 0.5µA Quiescent Current in Shutdown. z Fixed Output Voltage of 1.5V, 1.8V, 2.5V, 3.3V z Fast Transient Response z Current Limit and Thermal Limit z Available in SOT-223, TO-220, TO-263 TO-263-5, TO-252 and TO-252-5 Packages „ APPLICATIONS z Mother Board and Notebook z Gigabit Ethernet Switch z Microprocessor Power Systems z Network Cards z Peripheral Cards z GTL, GTL+, BTL, and SSTL Bus Terminators z DSPs Power Supplies z Battery Powered Applications „ DESCRIPTION The AIC1187 is an ultra low dropout and high performance linear regulator with 1A output current capability. The output voltage is fixed 1.5V, 1.8V, 2.5V and 3.3V.
