AIC1189 - Ultra LDO 2A Linear Regulator

Description

A low noise, high PSRR and ultra low dropout linear regulator AIC1189 is optimized for low ESR ceramic capacitors operation with 2A continuous current.

The AIC1189 is designed for portable and wireless devices with demanding performance and space requirements.

Features

  • Guaranteed 2A Output Current. Fast Response in Line/Load Transient. Wide Operating Voltage Ranges: 2.3V to 5.5V. 0.01µA Shutdown Standby Current . Low Quiescent Current: 80µA. Fixed: 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.7V, 3.0V, 3.3V, 3.5V, 3.7V, 3.8V Output Voltage. Adjustable Output Voltage are available from 0.8~4.5V. ：Low Dropout 330mV at 1.5A and 2.8V output voltage, 440mV at 2A and 2.8V output voltage. ：High PSRR 70dB at 1kHz. Active Low or High Shutdown Control. Current Limit and Thermal Prote.

📥 Download Datasheet

Datasheet preview – AIC1189

Datasheet Details

Part number AIC1189
Manufacturer Analog Intergrations Corporation
File Size 567.13 KB
Description Ultra LDO 2A Linear Regulator
Datasheet download datasheet AIC1189 Datasheet

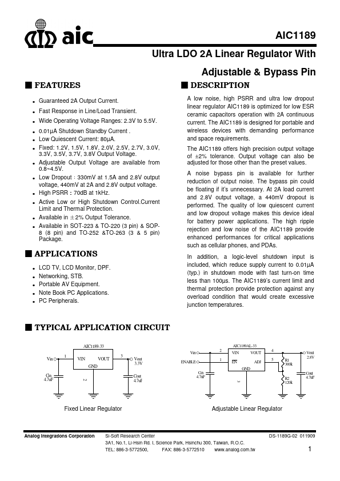

Additional preview pages of the AIC1189 datasheet.

📁 Similar Datasheet

  • AIC111 - IC Design Specification 1.3-V microPower(TM) DSP/uC Voice Band Audio CODEC (Rev. A) (ETCTI)
  • AIC1084 - 5A Low Dropout Positive Adjustable Regulator (Analog Integrations)
  • AIC1221 - Ultra LDO 2A Linear Regulator (aic)
  • AIC1531 - 500mA Dual Linear Regulator (AIC)
  • AIC1532 - 500mA DUAL REGULATOR (AIC)
  • AIC1630A - HIGH-EFFICIENCY STEP-UP DC/DC CONVERTER CONTROLLER (aic)
  • AIC1634 - 1.4MHz Current-Mode Step-Up DC/DC Converter (aic)
  • AIC1639 - 3-PIN ONE-CELL STEP-UP DC/DC CONVERTER (aic)
  • AIC1647 - White LED Step-Up Converter (aic)
  • AIC1720 - 100mA Low Dropout Linear Regulator (Analog Integrations)
Other Datasheets by Analog Intergrations Corporation
  • AIC1185 - 3A Ultra Low Dropout Linear Regulator
  • AIC1187 - 1A Ultra Low Dropout Linear Regulator
  • AIC1117 - 800mA Low Dropout Positive Adjustable Regulator
  • AIC1117A - 1A Low Dropout Positive Adjustable Regulator
  • AIC1190 - Ultra LDO 1A Linear Regulator
  • AIC1085 - 3A LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR
  • AIC1086 - 1.5A Low Dropout Positive Adjustable Regulator
  • AIC1340 - High Performance/ Tripple-Ouput/ Auto-Tracking Combo Controller

Full PDF Text Transcription

Click to expand full text
AIC1189 Ultra LDO 2A Linear Regulator With FEATURES Guaranteed 2A Output Current. Fast Response in Line/Load Transient. Wide Operating Voltage Ranges: 2.3V to 5.5V. 0.01µA Shutdown Standby Current . Low Quiescent Current: 80µA. Fixed: 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.7V, 3.0V, 3.3V, 3.5V, 3.7V, 3.8V Output Voltage. Adjustable Output Voltage are available from 0.8~4.5V. ：Low Dropout 330mV at 1.5A and 2.8V output voltage, 440mV at 2A and 2.8V output voltage. ：High PSRR 70dB at 1kHz. Active Low or High Shutdown Control.Current Limit and Thermal Protection. ±Available in 2% Output Tolerance. Available in SOT-223 & TO-220 (3 pin) & SOP8 (8 pin) and TO-252 &TO-263 (3 & 5 pin) Package. APPLICATIONS LCD TV, LCD Monitor, DPF. Networking, STB. Portable AV Equipment. Note Book PC Applications.
