AIC1185 - 3A Ultra Low Dropout Linear Regulator

Description

The AIC1185 is an ultra low dropout and high performance linear regulator with 3A output current capability.

The output voltage is fixed 1.5V, 1.8V, 2.5V and 3.3V.

Its low dropout voltage and fast transient response make it ideal for low voltage microprocessor applications.

Features

  • S z Guaranteed 3A Output Current z Low Ground Current z 0.5μA Quiescent Current in Shutdown z Fixed Output Voltage of 1.5V, 1.8V, 2.5V, 3.3V z Fast Transient Response z Current Limit and Thermal Limit z Available in SOT-223, TO-220, TO-263 TO-263-5, TO-252 and TO-252-5 Packages.

📥 Download Datasheet

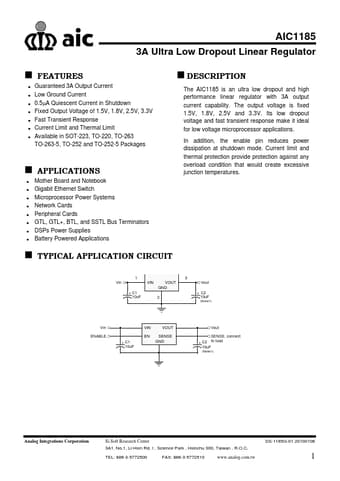

Datasheet preview – AIC1185

Datasheet Details

Part number AIC1185
Manufacturer Analog Intergrations Corporation
File Size 231.90 KB
Description 3A Ultra Low Dropout Linear Regulator
Datasheet download datasheet AIC1185 Datasheet
Additional preview pages of the AIC1185 datasheet.
