AIC1190 - Ultra LDO 1A Linear Regulator

Description

A low noise, high PSRR and ultra low dropout linear regulator AIC1190 is optimized for low ESR ceramic capacitors operation with 1A continuous current.

The AIC1190 offers high precision output voltage of ±2% tolerance.

Output voltage can also be adjusted for those other than the preset values.

Features

  • Guaranteed 1A Output Current. Fast Response in Line/Load Transient Wide Operating Voltage Ranges: 2.3V to 6.0V. 0.1µA Shutdown Standby Current Low Quiescent Current: < 60µA. Fixed: 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.7V, 3.0V, 3.3V, 3.5V, 3.7V, 3.8V Output Voltage. Adjustable Output Voltage are available from 0.8~4.5V Low Dropout 440mV at 1A and 2.8V output voltage. High PSRR 70dB at 1KHz.

📥 Download Datasheet

Datasheet preview – AIC1190

Datasheet Details

Part number AIC1190
Manufacturer Analog Intergrations Corporation
File Size 759.29 KB
Description Ultra LDO 1A Linear Regulator
Datasheet download datasheet AIC1190 Datasheet
Additional preview pages of the AIC1190 datasheet.

📁 Similar Datasheet

  • AIC111 - IC Design Specification 1.3-V microPower(TM) DSP/uC Voice Band Audio CODEC (Rev. A) (ETCTI)
  • AIC1084 - 5A Low Dropout Positive Adjustable Regulator (Analog Integrations)
  • AIC1221 - Ultra LDO 2A Linear Regulator (aic)
  • AIC1531 - 500mA Dual Linear Regulator (AIC)
  • AIC1532 - 500mA DUAL REGULATOR (AIC)
  • AIC1630A - HIGH-EFFICIENCY STEP-UP DC/DC CONVERTER CONTROLLER (aic)
  • AIC1634 - 1.4MHz Current-Mode Step-Up DC/DC Converter (aic)
  • AIC1639 - 3-PIN ONE-CELL STEP-UP DC/DC CONVERTER (aic)
  • AIC1647 - White LED Step-Up Converter (aic)
  • AIC1720 - 100mA Low Dropout Linear Regulator (Analog Integrations)
Other Datasheets by Analog Intergrations Corporation
  • AIC1117 - 800mA Low Dropout Positive Adjustable Regulator
  • AIC1117A - 1A Low Dropout Positive Adjustable Regulator
  • AIC1185 - 3A Ultra Low Dropout Linear Regulator
  • AIC1187 - 1A Ultra Low Dropout Linear Regulator
  • AIC1189 - Ultra LDO 2A Linear Regulator
  • AIC1085 - 3A LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR
  • AIC1086 - 1.5A Low Dropout Positive Adjustable Regulator
  • AIC1340 - High Performance/ Tripple-Ouput/ Auto-Tracking Combo Controller

Full PDF Text Transcription

Click to expand full text

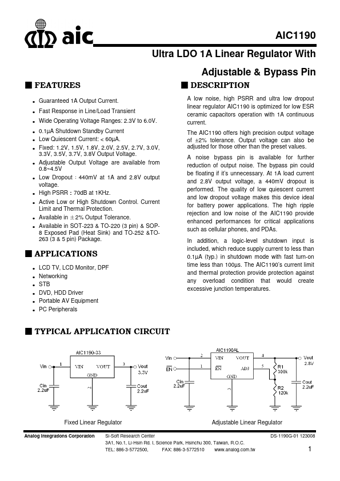

AIC1190 Ultra LDO 1A Linear Regulator With Adjustable & Bypass Pin FEATURES Guaranteed 1A Output Current. Fast Response in Line/Load Transient Wide Operating Voltage Ranges: 2.3V to 6.0V. 0.1µA Shutdown Standby Current Low Quiescent Current: < 60µA. Fixed: 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.7V, 3.0V, 3.3V, 3.5V, 3.7V, 3.8V Output Voltage. Adjustable Output Voltage are available from 0.8~4.5V Low Dropout 440mV at 1A and 2.8V output voltage. High PSRR 70dB at 1KHz. DESCRIPTION A low noise, high PSRR and ultra low dropout linear regulator AIC1190 is optimized for low ESR ceramic capacitors operation with 1A continuous current. The AIC1190 offers high precision output voltage of ±2% tolerance. Output voltage can also be adjusted for those other than the preset values.
