AIC2510

Step-Down PWM Converter

AIC2510 Features

* Operating Input Voltage From 4.5V to 30V 3.3V, 5V, 12V and Adjustable Output Version Adjustable Version Output Voltage Range, 1.2V to 30V ± 4% max Over Line and Load Regulation Available in TO-263-5, TO-220-5 and TO-220B Package Requires Only 4 External Components 150KHz Fixed Constant Frequency Low

AIC2510 General Description

The AIC2510 series are step-down monolithic PWM converters for delivering 3A at fixed voltages of 3.3V, 5.0V, 12V and using an external divider to adjust output voltage from 1.2V to 30V with excellent line and load regulation. Switching frequency up to 150KHz is achievable thus allowing smaller-size.

AIC2510 Datasheet (335.82 KB)

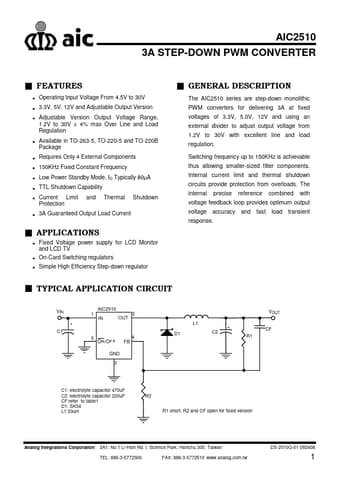

Preview of AIC2510 PDF

Datasheet Details

Part number:

AIC2510

Manufacturer:

Analog Intergrations Corporation

File Size:

335.82 KB

Description:

Step-down pwm converter.
