AIC2573

DC/DC Controller

AIC2573 Features

* High Efficiency: Up to 93% Single-Powered N-channel MOSFETs Synchronous Driver Wide Input Voltage Operation Range 4.5V to 25V Accurate Internal temperature compensated 0.8V Bandgap Reference Voltage with ±1% precision. Fast Transient Response - Duty cycle 0% to 95 % PWM Operation at 300KHz Built-in

AIC2573 General Description

The AIC2573 is a voltage mode synchronous buck PWM controller that drives external N-channel power MOSFET using a 300kHz fixed frequency architecure. This device is capable of producing an output voltage as low as 0.8V. It uses external divider to adjust output voltage with the exact right line and .

AIC2573 Datasheet (291.29 KB)

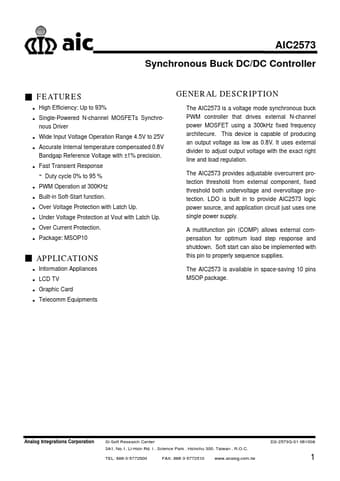

Preview of AIC2573 PDF

Datasheet Details

Part number:

AIC2573

Manufacturer:

Analog Intergrations Corporation

File Size:

291.29 KB

Description:

Dc/dc controller.
