AIC2566 Datasheet, Converter, Analog Intergrations Corporation

AIC2566 Features

  • Converter
  • 3A Continuous Output Current
  • Programmable Soft Start
  • 100mΩ Internal Power MOSFET Switch
  • Stable with Low ESR Output Ceramic Capacitors
  • U

PDF File Details

Part number:

AIC2566

Manufacturer:

Analog Intergrations Corporation

File Size:

397.91kb

Download:

📄 Datasheet

Description:

Step-down dc/dc converter. The AIC2566 is a high efficiency, step-down DC/DC converter that builds in a high side power MOSFET. It offers continuous 3A output c

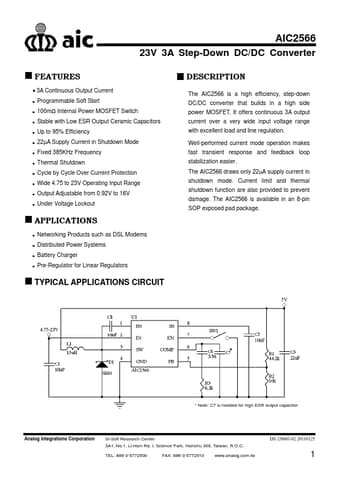

Datasheet Preview: AIC2566 📥 Download PDF (397.91kb)
Page 2 of AIC2566 Page 3 of AIC2566

AIC2566 Application

  • Applications
  • Networking Products such as DSL Modems
  • Distributed Power Systems
  • Battery Charger
  • Pre-Regulator
