AZ100LVEL11 Datasheet - Arizona Microtek

ECL/PECL 1:2 Differential Fanout Buffer

AZ100LVEL11 Features

* PACKAGE 265ps Propagation Delay 5ps Skew Between Outputs High Bandwidth Output Transitions Internal Input Pulldown Resistors Operating Range of 3.0V to 5.5V Direct Replacement for ON Semi MC100LVEL11, MC10EL11 & MC100EL11 Transist

AZ100LVEL11 General Description

1 2 Add R1 at end of part number for 7 inch (1K parts), R2 for 13 inch (2.5K parts) Tape & Reel. Date code “YWW” or “YYWW” on underside of part. The AZ10/100LVEL11 is a differential 1:2 fanout gate. The device is functionally similar to the E111 device but with higher performance capabilities. Ha.

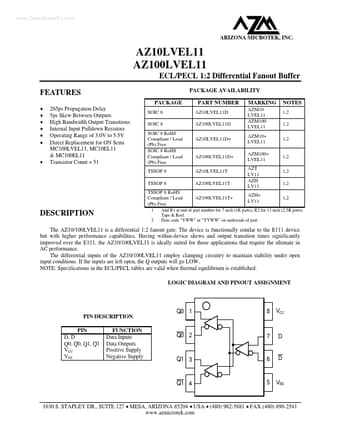

AZ100LVEL11 Datasheet (114.27 KB)

AZ100LVEL11 Datasheet Preview — Preview of AZ100LVEL11 PDF

Datasheet Details

Part number:

AZ100LVEL11

Manufacturer:

Arizona Microtek

File Size:

114.27 KB

Description:

Ecl/pecl 1:2 differential fanout buffer.
