AZ100LVEL33 ECL/PECL / 4 Divider

AZ100LVEL33 Description

www.DataSheet4U.com ARIZONA MICROTEK, INC.AZ10LVEL33 AZ100LVEL33 ECL/PECL ÷4 Divider .
The AZ10/100LVEL33 is an integrated ÷4 divider.

AZ100LVEL33 Features

* PACKAGE Green / RoHS Compliant / Lead (Pb) Free package available Operating Range of 3.0V to 5.5V 470ps Propagation Delay 4.0GHz Toggle Frequency Internal Input Pulldown Resistors Direct Replacement for ON Semiconductor

AZ100LVEL33 Applications

* the VBB reference should be connected to one side of the CLK/ CLK ¯¯¯¯ differential input pair. The input signal is then fed to the other CLK/ CLK ¯¯¯¯ input. The VBB pin can support 1.0mA sink/source current. When used, the VBB pin should be bypassed to ground via a 0.01μF capacitor. NOTE: Specifi

📥 Download Datasheet

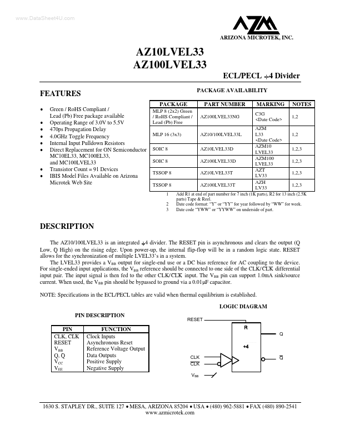

Preview of AZ100LVEL33 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ100LVEL33
Manufacturer
Arizona Microtek
File Size
153.83 KB
Datasheet
AZ100LVEL33_ArizonaMicrotek.pdf
Description
ECL/PECL / 4 Divider
