AZ100LVEL16 Datasheet - Arizona Microtek

AZ100LVEL16, ECL/PECL Differential Receiver

www.DataSheet4U.com AZ10LVEL16 AZ100LVEL16 .
Add R1 at end of part number for 7 inch (1K parts), R2 for 13 inch (2.

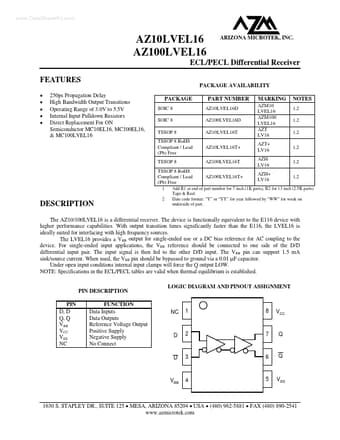

datasheet Preview Page 1 from Datasheet4u.com

AZ100LVEL16_ArizonaMicrotek.pdf

AZ100LVEL16 Datasheet Preview — Preview of AZ100LVEL16 PDF

Datasheet Details

Part number:

AZ100LVEL16

Manufacturer:

Arizona Microtek

File Size:

104.32 KB

Description:

ECL/PECL Differential Receiver

Features

* 250ps Propagation Delay High Bandwidth Output Transitions Operating Range of 3.0V to 5.5V Internal Input Pulldown Resistors Direct Replacement For ON Semiconductor MC10EL16, MC100EL16, & MC100LVEL16 PACKAGE SOIC 8 SOIC 8 TSSOP 8 TSSOP 8 RoHS Complian

Applications

* the VBB reference should be connected to one side of the D/D differential input pair. The input signal is then fed to the other D/D ¯ input. The VBB pin can support 1.5 mA sink/source current. When used, the VBB pin should be bypassed to ground via a 0.01 µF capacitor. Under open input conditions i
