AZ100LVEL16VV Datasheet - Arizona Microtek

AZ100LVEL16VV Dual Frequency ECL/PECL Oscillator Gain Stage & Buffer

The AZ100LVEL16VV is a specialized oscillator gain stage with two selectable data input pairs and a high gain output buffer including an enable. The QHG/Q ¯ HG outputs have a voltage gain several times greater than the Q/Q ¯ outputs. The AZ100LVEL16VV provides two selectable data input pairs that pe.

AZ100LVEL16VV Features

* High Bandwidth for ≥1GHz Similar Operation as AZ100EL16VR except with selectable data input pairs Operating Range of 3.0V to 5.5V Minimizes External Components Available in a 3x3mm MLP Package S

* Parameter (.s2p) and IBIS Model Files

AZ100LVEL16VV_ArizonaMicrotek.pdf

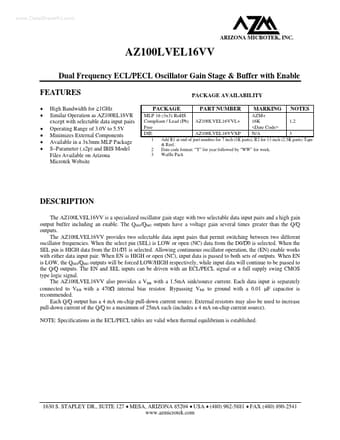

AZ100LVEL16VV Datasheet Preview — Preview of AZ100LVEL16VV PDF

Datasheet Details

Part number:

AZ100LVEL16VV

Manufacturer:

Arizona Microtek

File Size:

119.68 KB

Description:

Dual frequency ecl/pecl oscillator gain stage & buffer.
