AZ100LVEL16VRL ECL/PECL Oscillator Gain Stage & Buffer with Selectable Enable

The AZ100LVEL16VR is a specialized oscillator gain stage with high gain output buffer including an enable. The QHG/Q ¯ HG outputs have a voltage gain several times greater than the Q/Q ¯ outputs. The AZ100LVEL16VR provides a selectable enable that allows continuous oscillator operation. See truth ta.

AZ100LVEL16VRL Features

* High Bandwidth for ≥1GHz Similar Operation as AZ100EL16VO Operating Range of 3.0V to 5.5V Minimizes External Components Selectable Enable Polarity and Threshold (CMOS/TTL or PECL) Available in a 3x3mm MLP Package PACKAGE AVAILABILITY PACKAG

AZ100LVEL16VRL_ETC.pdf

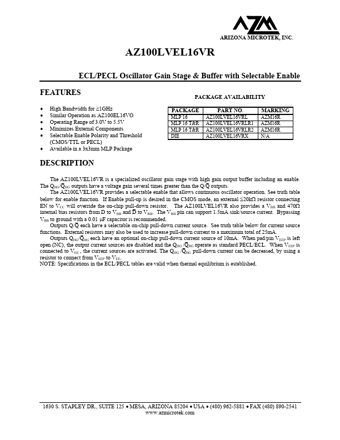

AZ100LVEL16VRL Datasheet Preview — Preview of AZ100LVEL16VRL PDF

Datasheet Details

Part number:

AZ100LVEL16VRL

Manufacturer:

ETC

File Size:

178.44 KB

Description:

Ecl/pecl oscillator gain stage & buffer with selectable enable.
