AZ100LVEL16VS, ECL/PECL Differential Receiver

www.DataSheet4U.com ARIZONA MICROTEK, INC.AZ10LVEL16VS AZ100LVEL16VS ECL/PECL Differential Receiver with Variable Output Swing .
2 Add R1 at end of part number for 7 inch (1K parts), R2 for 13 inch (2.

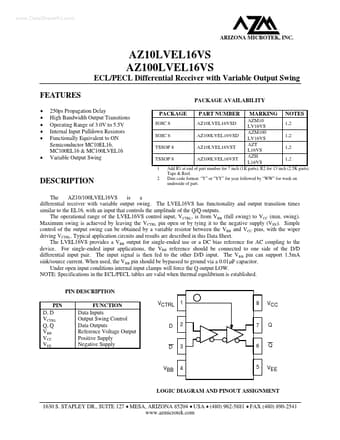

datasheet Preview Page 1 from Datasheet4u.com

AZ100LVEL16VS_ArizonaMicrotek.pdf

AZ100LVEL16VS Datasheet Preview — Preview of AZ100LVEL16VS PDF

Datasheet Details

Part number:

AZ100LVEL16VS

Manufacturer:

Arizona Microtek

File Size:

127.17 KB

Description:

ECL/PECL Differential Receiver

Features

* 250ps Propagation Delay High Bandwidth Output Transitions Operating Range of 3.0V to 5.5V Internal Input Pulldown Resistors Functionally Equivalent to ON Semiconductor MC10EL16, MC100EL16 & MC100LVEL16 Variable Output Swing PACKAGE SOIC 8 S

Applications

* the VBB reference should be connected to one side of the D/D ¯ differential input pair. The input signal is then fed to the other D/D ¯ input. The VBB pin can support 1.5mA sink/source current. When used, the VBB pin should be bypassed to ground via a 0.01μF capacitor. Under open input conditions i
