AT84AS008

10-Bit 2.2 Gsps ADC

AT84AS008 Features

* 10-bit Resolution ADC 2.2 Gsps Sampling Rate Seamless ascending Compatibility with Atmel TS83102G0B 10-bit 2 Gsps ADC 500 mVpp Full Scale Analog Input Range 100Ω Differential or 50Ω Single-ended Analog input and Clock Input 100Ω Differential Outputs ECL/LVDS Output Compatibility Functions:

AT84AS008 General Description

The AT84AS008 10-bit 2.2 Gsps ADC allows accurate digitization of high frequency signals thanks to the 3.3 GHz analog input bandwidth. The innovative design of the on-chip Track and Hold (T/H) and digitizing core lead to unprecedented dynamic performance at a sampling rate of 2.2 GHz (over the full .

AT84AS008 Datasheet (116.59 KB)

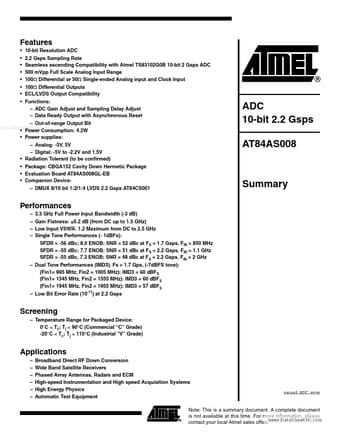

Preview of AT84AS008 PDF

Datasheet Details

Part number:

AT84AS008

Manufacturer:

Atmel

File Size:

116.59 KB

Description:

10-bit 2.2 gsps adc.
