BLL2453 500KHz COT Synchronous Step-Down DC/DC Converter

BELLING

Description

BLL2453 16V, 3A, 500KHz COT Synchronous Step-Down DC/DC Converter .
FEATURES The BLL2453 is a fully integrated synchronous rectified step-down converter that provides wide 4.

📥 Download Datasheet

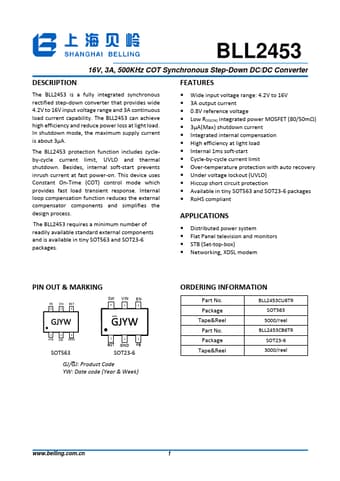

BLL2453 Datasheet Preview — Preview of BLL2453 PDF

Datasheet Specifications

Part number: BLL2453
Manufacturer: BELLING
File Size: 840.12 KB
Datasheet: BLL2453-BELLING.pdf
Description: 500KHz COT Synchronous Step-Down DC/DC Converter

Features

* The BLL2453 is a fully integrated synchronous rectified step-down converter that provides wide 4.2V to 16V input voltage range and 3A continuous load current capability. The BLL2453 can achieve high efficiency and reduce power loss at light load. In shutdown mode, the maximum supply current is abou

Applications

* Distributed power system
* Flat Panel television and monitors
* STB (Set-top-box)
* Networking, XDSL modem PIN OUT & MARKING FB EN BST 6 5 4 SW VIN EN 6 5 4 1 2 3 VIN SW GND 1 2 3 BST GND FB SOT563 SOT23-6 _ GJ/GJ: Product Code YW: Date code (Ye
