2SC2334, 2SC2234 - Silicon NPN transistor

2SC2334 Description

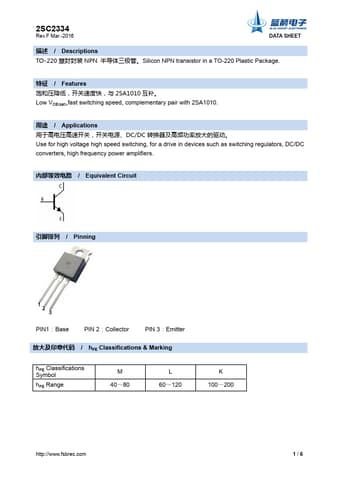

2SC2334 Rev.F Mar.-2016 DATA SHEET / .
TO-220 NPN 。Silicon NPN transistor in a TO-220 Plastic Package.

2SC2334 Applications

* ，、DC/DC 。 Use for high voltage high speed switching, for a drive in devices such as switching regulators, DC/DC converters, high frequency power amplifiers.  / Equivalent Circuit / Pinning 12 3 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Sy

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SC2334, 2SC2234. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC2334, 2SC2234
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
1.19 MB
Datasheet
2SC2234-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
Note
This datasheet PDF includes multiple part numbers: 2SC2334, 2SC2234.
Please refer to the document for exact specifications by model.
