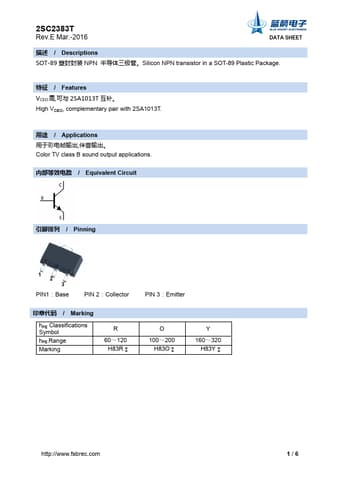

2SC2383T
Rev.E Mar.-2016
DATA SHEET
/ Descriptions SOT-89 NPN 。Silicon NPN transistor in a SOT-89 Plastic Package.
/ Features
VCEO , 2SA1013T 。 High VCEO, complementary pair with 2SA1013T.
/ Applications ,。 Color TV class B sound output applications.
/ Equivalent Circuit
/ Pinning
1 2 3
PIN1：Base
PIN 2：Collector
/ Marking
hFE Classifications Symbol hFE Range Marking
R
60～120 H83R
** ** **
PIN 3：Emitter
O
100～200 H83O
Y
160～320 H83Y
http://www.fsbrec.com
1/6
2SC2383T
Rev.E Mar.
