2SC2383 - TRANSISTOR

Datasheet Summary

Features

  • mental matters such as the RoHS compatibility of Product. Please use Product in complian.

📥 Download Datasheet

Datasheet preview – 2SC2383

Datasheet Details

Part number 2SC2383
Manufacturer Toshiba Semiconductor
File Size 159.49 KB
Description TRANSISTOR
Datasheet download datasheet 2SC2383 Datasheet
Additional preview pages of the 2SC2383 datasheet.

📁 Similar Datasheet

  • 2SC2383 - NPN Transistor (INCHANGE)
  • 2SC2383 - NPN EPITAXIAL SILICON TRANSISTOR (Unisonic Technologies)
  • 2SC2383-O - NPN Transistor (MCC)
  • 2SC2383-R - NPN Transistor (MCC)
  • 2SC2383-Y - NPN Transistor (MCC)
  • 2SC2383T - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC2380 - Silicon NPN Transistor (Toshiba)
  • 2SC2381 - Silicon NPN Transistor (Toshiba)
  • 2SC2389 - (2SC2389 / 2SC2390) NPN Silicon Transistor (Rohm)
  • 2SC2389S - High-voltage Amplifier Transistor (Rohm)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text

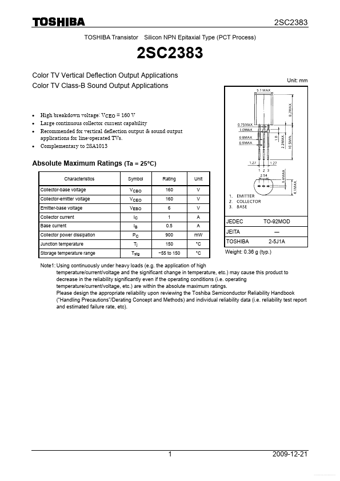

2SC2383 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) 2SC2383 Color TV Vertical Deflection Output Applications Color TV Class-B Sound Output Applications Unit: mm • • • • High breakdown voltage: VCEO = 160 V Large continuous collector current capability Recommended for vertical deflection output & sound output applications for line-operated TVs. Complementary to 2SA1013 Absolute Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 160 160 6 1 0.5 900 150 −55 to 150 Unit V V V A A mW °C °C JEDEC JEITA TOSHIBA TO-92MOD ― 2-5J1A Weight: 0.36 g (typ.
